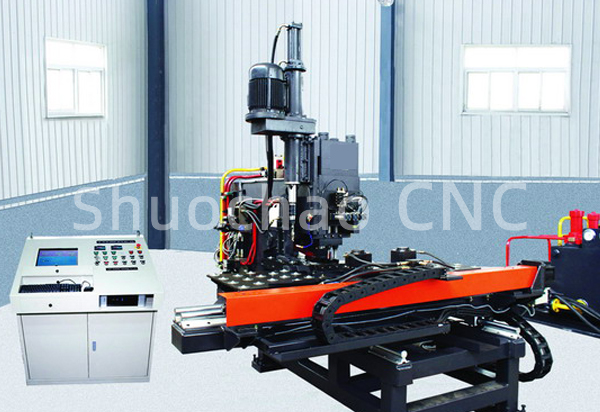

CJHZ Series Hydraulic Punching and Drilling Compound Machine
CNC hydraulic punching and drilling compound machine is mainly used for processing connecting plates in power transmission and transformation towers, communication towers or steel structures, and for punching, stamping and drilling flat materials in other mechanical industries
Punching
Drilling
Stamping
Flat parts-Electrical machinery
★CJHZ Series CNC hydraulic punching and drilling compound machine mainly used for punching, typing, and drilling processes of flat workpieces in the production of metal components.
★The equipment has an independent hydraulic power system and electrical numerical control system with centralized control.
★The main machine is equipped with 2-axis CNC feeding workbench, the workpiece can be accurately positioned at any position within the working area to complete the punching, typing and drilling functions.
★Easy loading and unloading of molds and accurate positioning greatly shorten the work stopping time and mold adjustment time, improve the working efficiency and expand the application range of this equipment.
★The equipment is equipped with one typing station and two punching stations, achieving processing of multiple varieties and apertures.
★The CJHZ series equipment also has an additional drilling station installed to provide large-diameter drilling processing function.
| Item | CJHZ100 | CJHZ120 | Unit |
| Max. workpiece size | 1500×800
Repositionable to increase the range of X-axis machining |
1500×800
Repositionable to increase the range of X-axis machining |
mm |
| Workpiece Thickness Range | 5~25 | 5~30 | mm |
| Max. Punching diameter | Φ26 | Φ30 | mm |
| Max. Drilling diameter | Φ40 | Φ40 | mm |
| No. of modules | 4 | 4 | Pcs |
| Punching force | 1000 | 1200 | kN |
| Typing power | 1000 | 1200 | kN |
| Drilling spindle process | 180 | 180 | mm |
| Spindle speed | 120-560 | 120-560 | r/min |
| Number of characters | 14 | 14 | Pcs |
| Letter size | 14×10×19 | 14×10×19 | mm |
| Servo motor power | 2×2 | 2×2 | Kw |
| Drilling spindle power | 5.5 | 5.5 | Kw |
